Outside Air Temperature Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Lift the tab (A) to release the lock, then remove the outside air temperature sensor (B) from the bracket. Disconnect the 2P connector (C) from the outside air temperature sensor.

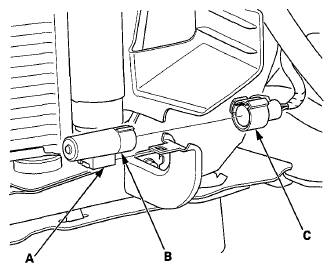

    Fig 1: Identifying Outside Air Temperature Sensor Tab And Connector
    G06968391Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
