Rearview Camera Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the tailgate and related parts.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ) and the rear license trim (see REAR LICENSE TRIM REPLACEMENT ).
Disconnect the connectors (A), and detach the harness clips.

Fig 1: Locating Connectors And Rearview Camera Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the nuts, and rearview camera assembly (B).

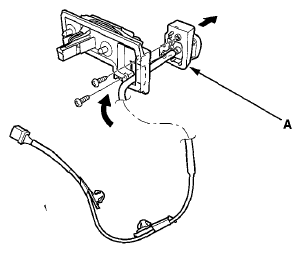

Remove the screws and the rearview camera (A).

Fig 2: Locating Screws And Rearview Camera
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rearview camera in the reverse order of removal.
