Rear Center Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear bumper (see FRONT FOG LIGHT TRIM REPLACEMENT ).
Disconnect the 6P connector (A) from the rear center sensor (B).

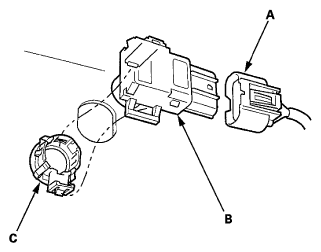

Fig 1: Identifying 6P Connector And Rear Center Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear center sensor and the ring (C).
Install the parts in the reverse order of removal.
