Rear Corner Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper (see FRONT FOG LIGHT TRIM REPLACEMENT ).
  2. Disconnect the corner sensor 6P connector (A).

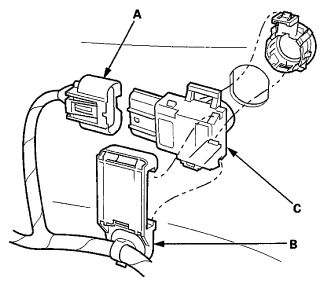

    Fig 1: Identifying Corner Sensor 6P Connector, Retainer And Sensor
    G06970454Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the retainer (B) and remove the sensor (C).
  4. Install the sensor in the reverse order of removal.
