A/C Compressor Relief Valve Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the A/C compressor relief valve released refrigerant to the atmosphere, determine and correct the cause of the excessive system pressure, then replace the relief valve.

Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY ).
Raise the vehicle on a lift.
Remove the relief valve (A) and the O-ring (B). Plug the opening to keep foreign matter from entering the system, and the A/C compressor oil from running out.

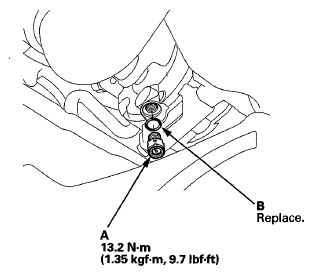

Fig 1: Locating Relief Valve And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the mating surfaces.
Replace the O-ring on the relief valve, and apply a thin coat of refrigerant oil before installing it.
Remove the plug you installed in step 2, then install and tighten the relief valve.
Charge the system (see SYSTEM CHARGING ).
