A/C Compressor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not install the A/C compressor into a system unless you are completely sure that the system is free of contamination. Installing the A/C compressor into a contaminated system can result in premature A/C compressor failure.
  1. If the A/C compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
  2. Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY  ).
  3. Remove the A/C condenser fan shroud (see FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION ), and the alternator (see DRIVE BELT AUTO-TENSIONER AIR BLEEDING ).
  4. Remove the bolts and the nut, then disconnect the suction hose (A) and the discharge hose (B) from the A/C compressor. Remove the O-rings (C). Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

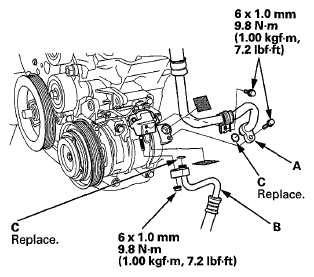

    Fig 1: Locating Suction Hose, Discharge Hose And O-Rings With Torque Specifications
    G06424186Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the mounting bolts and the A/C compressor (A). Be careful not to damage the radiator fins when removing the A/C compressor.
    Fig 2: Locating Mounting Bolts And A/C Compressor With Torque Specifications
    G06424187Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the A/C compressor in the reverse order of removal, and note these items:
    • Inspect the A/C lines for any signs of contamination.
    • If you're installing a new A/C compressor, you must calculate the amount of refrigerant oil to be removed from it (see A/C REFRIGERANT OIL REPLACEMENT  ). A new A/C compressor comes with a full charge of oil.
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
    • Use only PAG refrigerant oil (DENSO ND-OIL 8) for HFC-134a DENSO A/C systems.
    • To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
    • Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
    • Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
    • Be careful not to damage the radiator fins when installing the A/C compressor and the A/C condenser fan shroud.
    • Charge the system (see SYSTEM CHARGING  ).
