Blower Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).,
  2. Remove the passenger's undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  3. Remove the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  4. Remove the dust and pollen filter assembly from the blower unit.

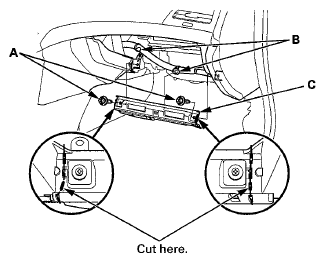

  5. Remove the bolts (A) and the wire harness clip (B). Then cut the plastic cross brace (C) in the glove box opening with diagonal cutters in the area shown. Retain the plastic cross brace to be reinstalled later.
    Fig 1: Locating Bolts, Wire Harness Clip And Plastic Cross Brace
    G06424165Courtesy of AMERICAN HONDA MOTOR CO., INC.

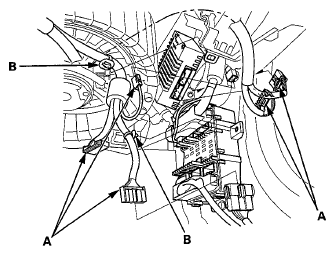

  6. Disconnect these connectors (A): Passenger's under-dash fuse/relay box connector D (28P), the stereo amplifier connectors A (24P) and B (18P), the AM/FM antenna lead (3P), and right side wire harness connector C508 (20P). Remove the wire harness clips (B).
    Fig 2: Locating Passenger's Under-Dash Fuse/Relay Box Connector D (28P), Stereo Amplifier Connectors A (24P) And B (18P)
    G06424166Courtesy of AMERICAN HONDA MOTOR CO., INC.

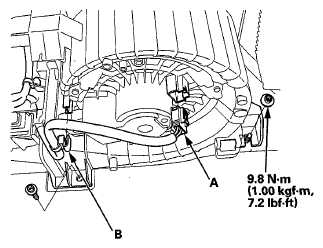

  7. Disconnect the connector (A) from the blower motor, and detach the wire harness clip (B). Remove the self-tapping screw and the mounting nut.
    Fig 3: Locating Blower Motor Connector And Wire Harness Clip With Torque Specifications
    G06424167Courtesy of AMERICAN HONDA MOTOR CO., INC.

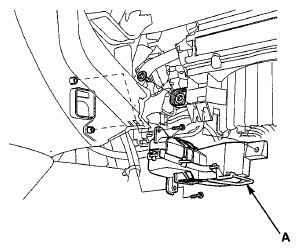

  8. Remove the self-tapping screws, and the passenger's heater duct (A).
    Fig 4: Locating Passenger's Heater Duct
    G06424168Courtesy of AMERICAN HONDA MOTOR CO., INC.

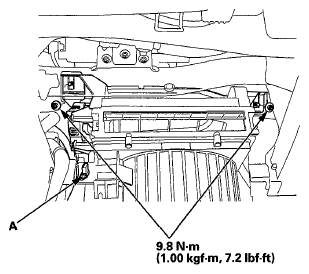

  9. Disconnect the connector (A) from the recirculation control motor. Remove the mounting nuts.
    Fig 5: Locating Recirculation Control Motor Connector With Torque Specifications
    G06424169Courtesy of AMERICAN HONDA MOTOR CO., INC.

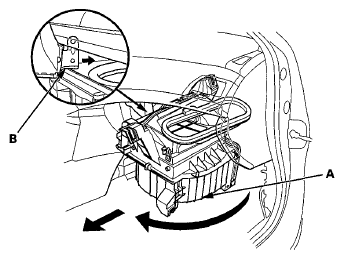

  10. Pull the blower unit (A) out while rotating it clockwise as shown, so that the glove box bracket (B) passes through the dust and pollen filter area.
    Fig 6: Locating Blower Unit And Glove Box Bracket
    G06424170Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the unit in the reverse order of removal. Make sure that there is no air leakage.
