Receiver/Dryer Desiccant Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install the receiver/dryer as quickly as possible to prevent the system from absorbing moisture from the air.

Remove the A/C condenser (see A/C CONDENSER REPLACEMENT ).
Remove the bolts from the A/C condenser, then remove the receiver/dryer (A), the bracket (B), and the O-rings (C).

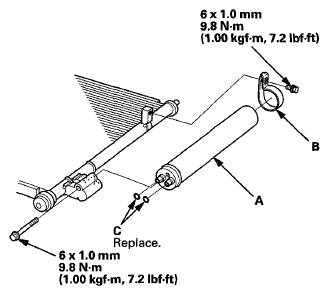

Fig 1: Locating Receiver/Dryer, Bracket And O-Rings With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the receiver/dryer in the reverse order of removal. Replace the O-rings with new ones, and apply a thin coat of refrigerant oil (DENSO ND-OIL 8) before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
