4WD model

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor lid (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the access panel (A) from the floor.

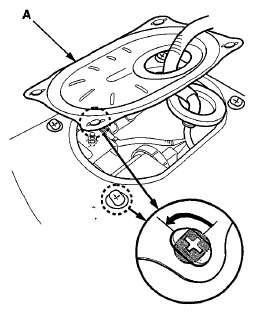

    Fig 1: Identifying Access Panel From Floor
    G06423011Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hose (A) and the FTP sensor 3P connector (B).

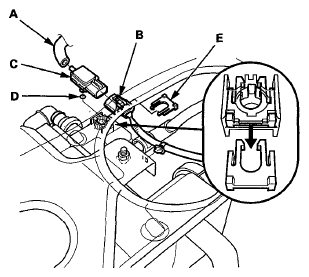

    Fig 2: Identifying FTP Sensor 3P Connector And Hose
    G06423012Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the FTP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
