Brake System Bleeding: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not spill brake fluid on the vehicle; it may damage the paint. If brake fluid gets on the paint, wash it off immediately with water.

NOTE:

Do not reuse the drained brake fluid. Use only new Honda DOT 3 Brake Fluid from an unopened container. Using a non-Honda brake fluid can cause corrosion and shorten the life of the system.
Make sure no dirt or other foreign matter gets in the brake fluid.
The reservoir connected to the master cylinder must be at the MAX (upper) level mark at the start of the bleeding procedure and checked after bleeding each wheel. Add fluid as required.
There are three different methods used for bleeding brake systems. The method shown here is the preferred manual method for removing the air from the system. For pressure or vacuum bleeding, refer to tool manufacturer's instructions included with the tool.

Make sure the brake fluid level in the reservoir (A) is at the MAX (upper) level line (B).

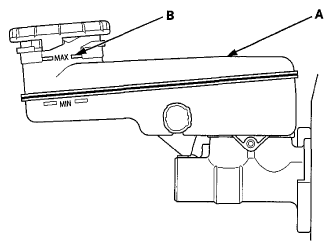

Fig 1: Identifying Brake Fluid Reservoir And Max Level Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Start the bleeding at the driver's side of the front brake system.
NOTE: Bleed the calipers in the sequence shown.

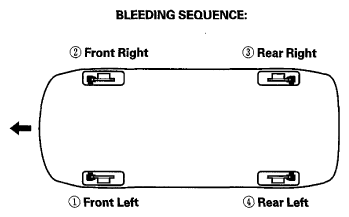

Fig 2: Identifying Bleeding Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach a length of clear drain tube (A) to the bleed screw (B). Submerge the other end of the drain tube into a clear plastic catch bottle of brake fluid (C).
