Spark Plug Inspection (2012 Model)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ignition coils and the spark plugs (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
Inspect the electrodes and the ceramic insulator:
- Burned or worn electrodes may be caused by these conditions:
  - Advanced ignition timing
  - Loose spark plug
  - Plug heat range too hot
  - Insufficient cooling
- Fouled plugs may be caused by these conditions:
  - Retarded ignition timing
  - Oil in combustion chamber
  - Incorrect spark plug gap
  - Plug heat range too cold
  - Excessive idling/low speed running
  - Clogged air cleaner element
  - Deteriorated ignition coils

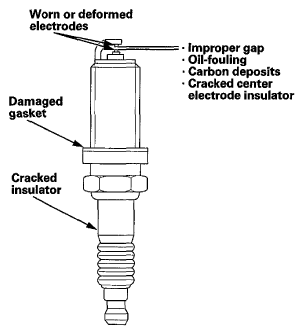

    Fig 1: Inspecting Spark Plug
    Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the plug at the specified interval, or if the center electrode (A) is rounded, or if the spark plug gap (B) is out of specification. Use only the spark plugs listed.
NOTE: Do not adjust the gap of iridium tip plugs.

NOTE: Do not use plug cleaner.

Spark Plugs

NGK: DILZKR7A11G

Electrode Gap

Standard (New): 1.0-1.1 mm (0.039-0.043 in)

Fig 2: Identifying Spark Plug Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the spark plugs and the ignition coils (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
