Ignition Switch Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the ignition switch (B).

Fig 1: Identifying 5P Connector Terminals And Ignition Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

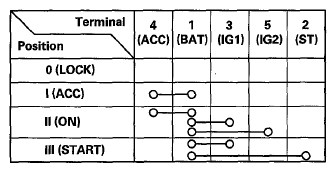

Fig 2: Ignition Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If continuity is not as specified, replace the ignition switch (see IGNITION SWITCH REPLACEMENT ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
