Park Pin Switch Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center lower console (see CENTER LOWER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the shift lever 12P connector (A).

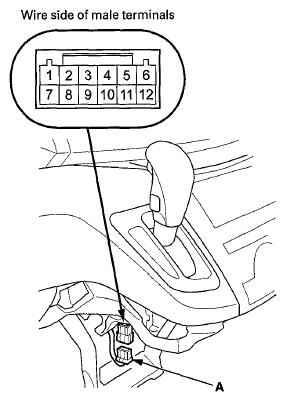

Fig 1: Identifying Shift Lever 12P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the figure below.

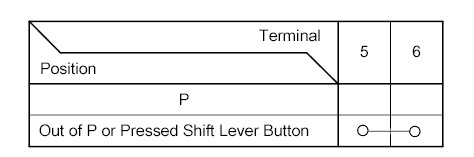

Fig 2: Park Pin Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, check the shift cable adjustmet:
- 6-speed A/T model (see SHIFT CABLE ADJUSTMENT ).
- 5-speed A/T model (see SHIFT CABLE ADJUSTMENT ).
If the cable adjustment is OK, replace the park pin switch:
- 6-speed A/T model (see PARK PIN SWITCH REPLACEMENT ).
- 5-speed A/T model (see PARK PIN SWITCH REPLACEMENT ).
