C501 (View 210)

WHT
Under middle of dash
Connects engine compartment wire harness (dashboard) to dashboard wire harness A (left branch)

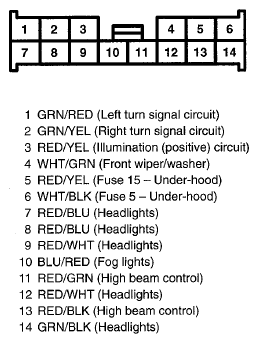

Fig 1: C501 Connector Terminal (View 210)
