ODS Unit (View 248)

BLK
Left side of front passenger's seat
Connector A
- To side element sensor

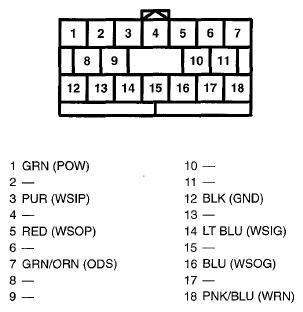

  Fig 1: ODS Unit Connector Terminal - Connector A (View 248)
Connector B
- To lower element sensor

  Fig 2: ODS Unit Connector Terminal - Connector B (View 248)
Connector C
- To upper element sensor

  Fig 3: ODS Unit Connector Terminal - Connector C (View 248)
Connector D
- On ODS unit harness

  Fig 4: ODS Unit Connector Terminal - Connector D (View 248)
