Rearview Camera Connector (Navigation) (View 200)

• WHT
• Middle of tailgate
• Connects tailgate wire harness to rearview camera sub-harness

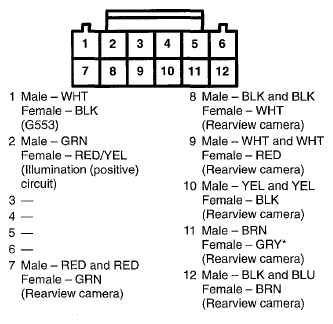

  Fig 1: Rearview Camera Connector (Navigation) Connector Terminal (View 200)



* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
