XM Receiver (EX, SC) (View 256)

Connector A

• WHT
• On floor wire harness (right branch)

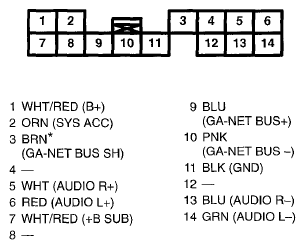

  Fig 1: XM Receiver (EX, SC) Connector Terminal - Connector A (View 256)



* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector B

• BLK
• On XM antenna sub-harness
  Fig 2: XM Receiver (EX, SC) Connector Terminal - Connector B (View 256)
