Driving Pattern

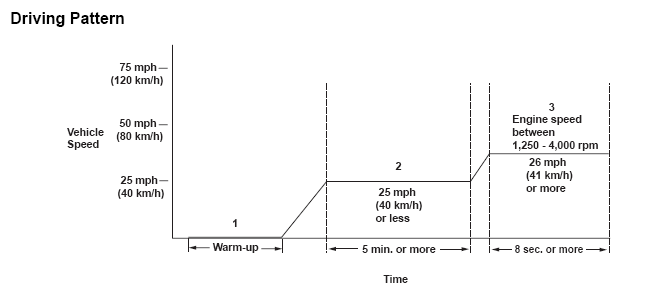

Fig 1: Vehicle Speed Driving Pattern
G00492862Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in neutral) until the radiator fan comes on.
  2. Drive the vehicle at a steady speed up to 25 mph (40 km/h), for at least 5 minutes.
  3. Then, drive immediately at a steady speed of 26 mph (41 km/h) and engine speed between 1,250 - 4,000 rpm for at least 8 seconds.
