DTC P0134: Air/Fuel Ratio (A/F) Sensor (Sensor 1) Heater System Malfunction: Notes

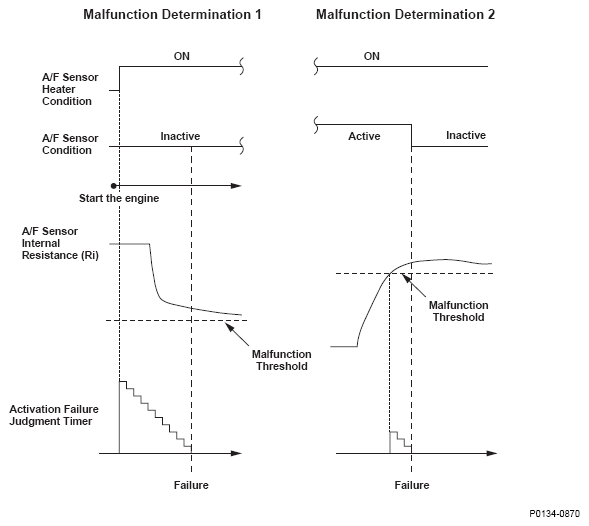

Fig 1: Malfunction Determination Chart
G05616451Courtesy of AMERICAN HONDA MOTOR CO., INC.
