DTC P0796: A/T Clutch Pressure Control Solenoid Valve C Stuck OFF: Notes

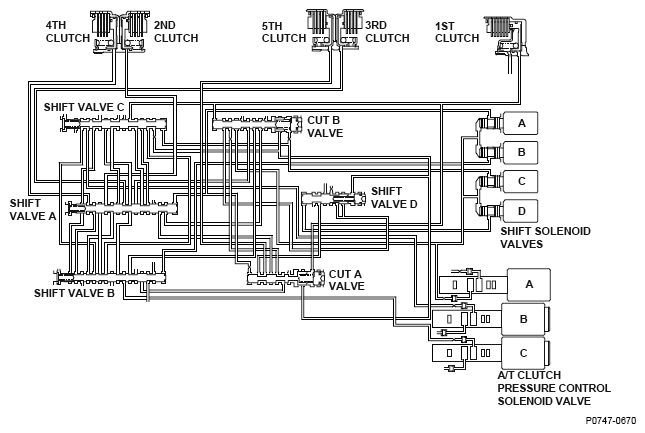

Fig 1: A/T Clutch Pressure Control Solenoid Valve C Stuck Off - Circuit Diagram
G04825720Courtesy of AMERICAN HONDA MOTOR CO., INC.

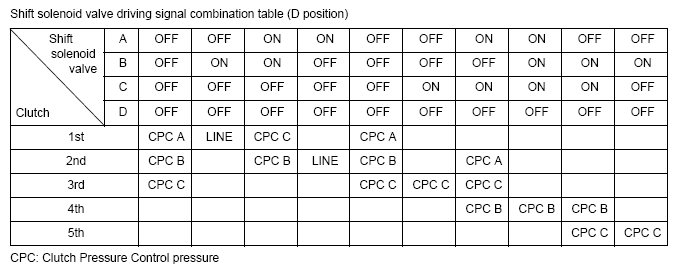

Fig 2: Shift Solenoid Valve Driving Signal Combination Table (D Position)
G06124284Courtesy of AMERICAN HONDA MOTOR CO., INC.
