Heater-A/C Control Panel Removal/Installation (With A/C)

Heater-A/C Control Panel Removal/Installation

1. Remove the center panel:
- With navigation system Audio-Navigation Unit Removal/Installation (With Navigation)

- Without navigation system

2. Remove the control cables from the blower/heater unit. Adjustments

3. Pull up the right portion of the instrument panel. Instrument Panel Removal/Installation

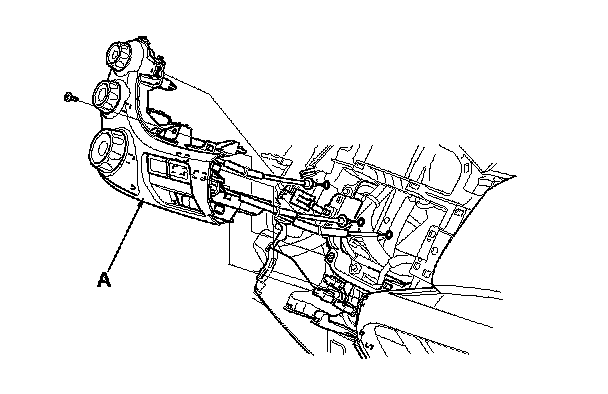

4. Remove the screw, and pull out the heater-A/C control panel (A) to access the electrical connectors.

5. Disconnect the connectors, and remove the heater-A/C control panel along with the control cables.

6. Install the control panel in the reverse order of removal. After installation, operate the controls to make sure they work properly.
