Mode Control Switch Test (With A/C)

Mode Control Switch Test

1. Remove the heater-A/C control panel. Heater-A/C Control Panel Removal/Installation (With A/C)

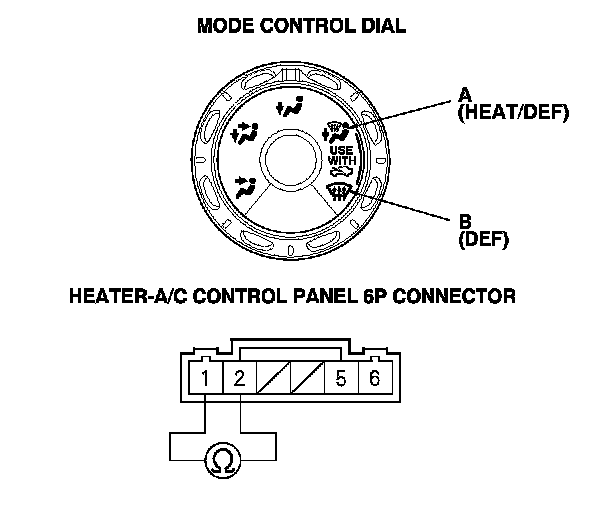

2. Check for continuity between heater-A/C control panel 6P connector terminals No. 1 and No. 2, while rotating the mode control dial from (A) and (B).

3. If there is no continuity, replace the mode control switch. Overhaul
