CKP Pulse Plate Replacement

CKP Pulse Plate Replacement

1. Remove the crankshaft. Crankshaft and Piston Removal

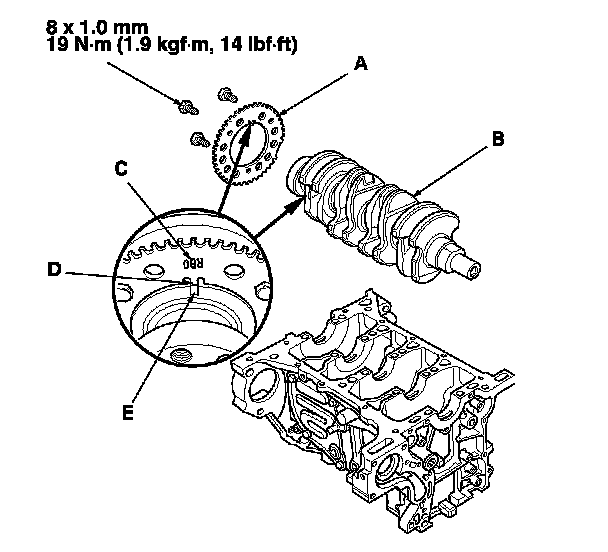

2. Remove the crankshaft position (CKP) pulse plate (A).

3. Install the CKP pulse plate on the crankshaft (B): face the marked side (C) away from the crankshaft, and align the tab (D) on the CKP pulse plate with the groove (E) on the crankshaft.

4. Install the crankshaft. Crankshaft Installation
