Servo Body Spring Specifications (A/T)

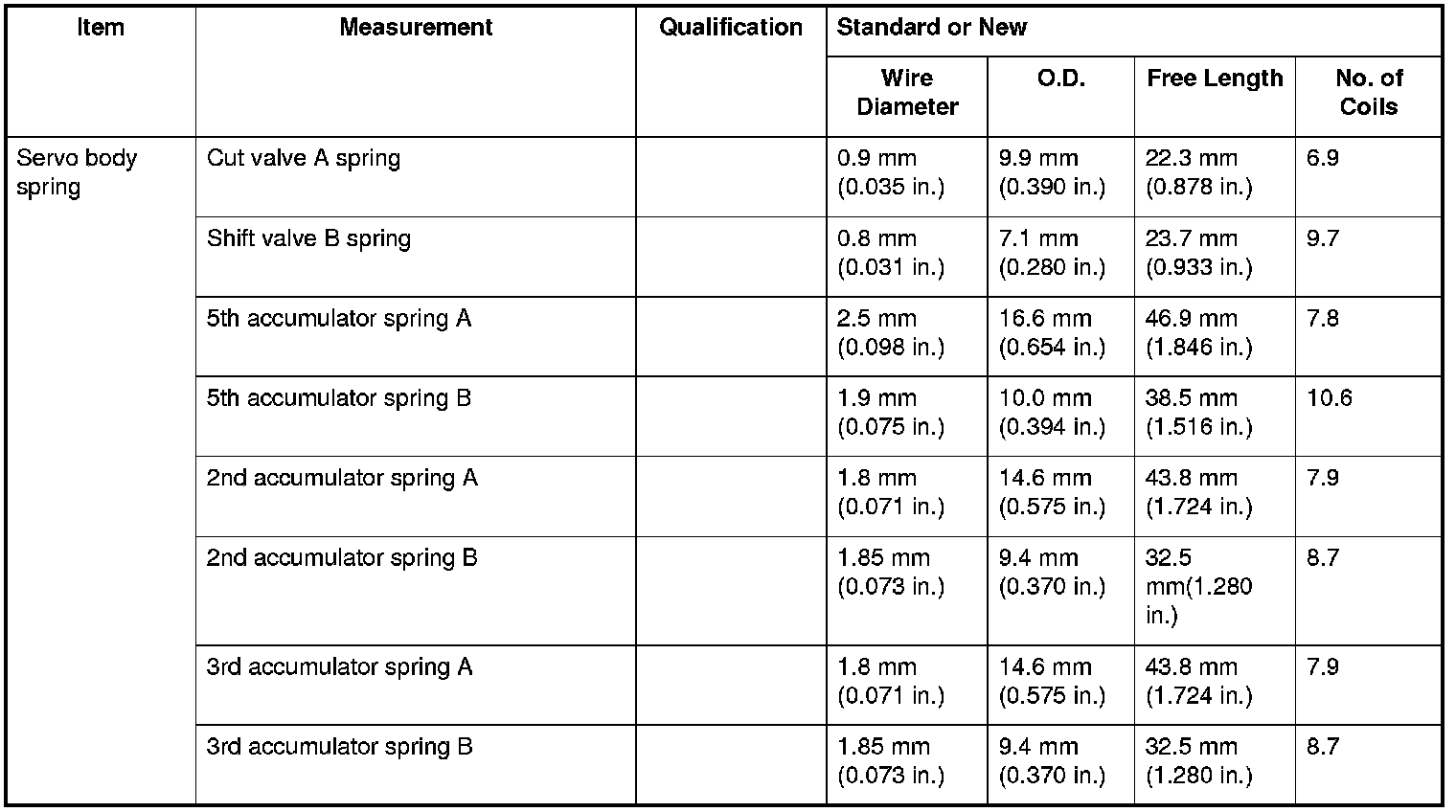

Servo body spring Specifications

Servo body spring Servo Body Disassembly, Inspection, and Reassembly
