Component Location Index
'07 model

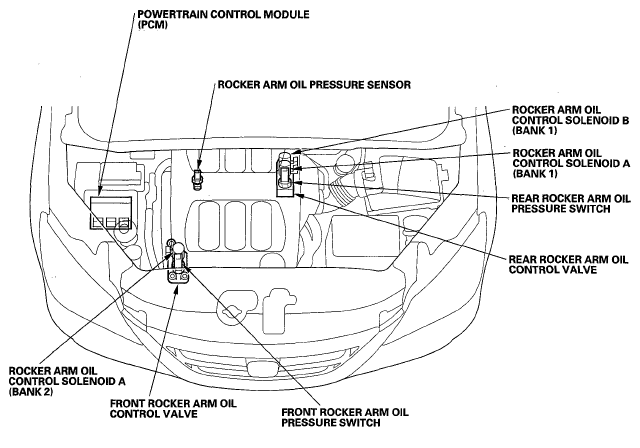

Fig 1: Identifying Variable Cylinder Management (VCM) System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
'08-10 models

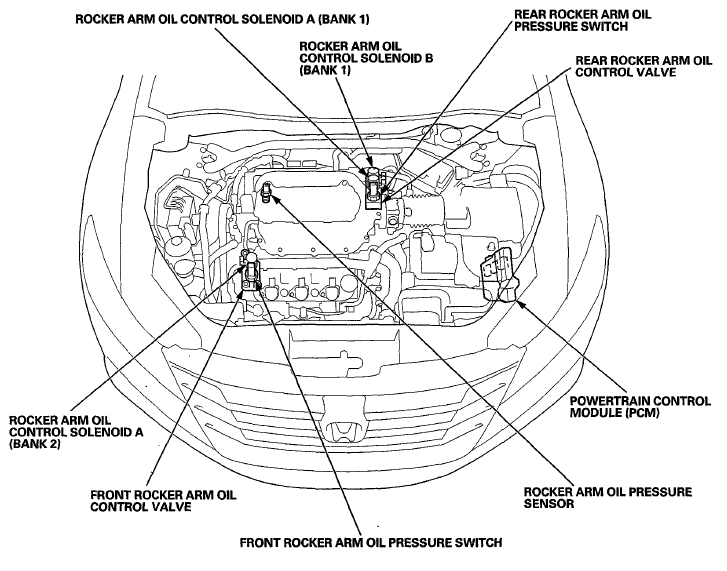

Fig 2: Identifying Variable Cylinder Management System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
