View 257 - D3 Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

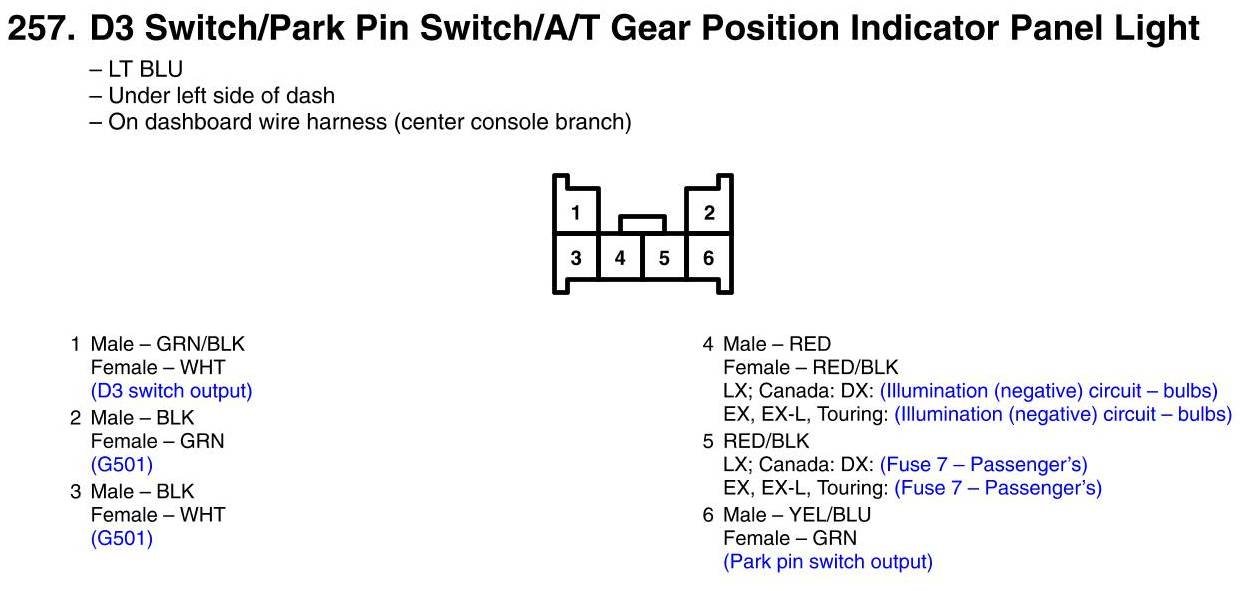

View 257 - D3 Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector View
