Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Switch
>>
Ignition Key Switch/Key Light Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

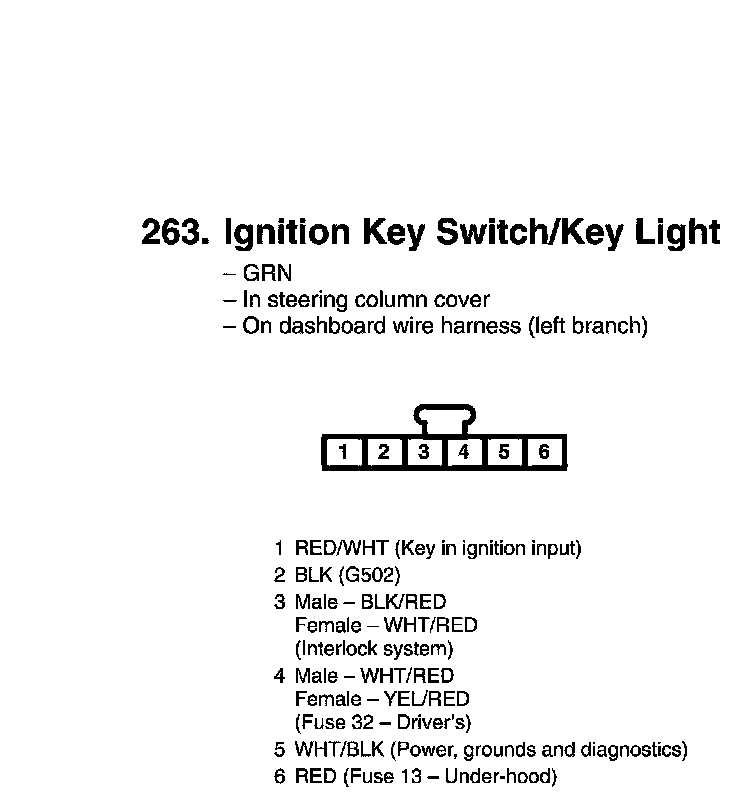

Ignition Key Switch/Key Light Connector View
