Engine Mount Control Unit: Service and Repair

Engine Mount Control Unit Replacement

'08-10 models J35A7 engine

1. Remove the lower glove box Lower Glove Box Removal/Installation, and the passenger's side kick panel Service and Repair.

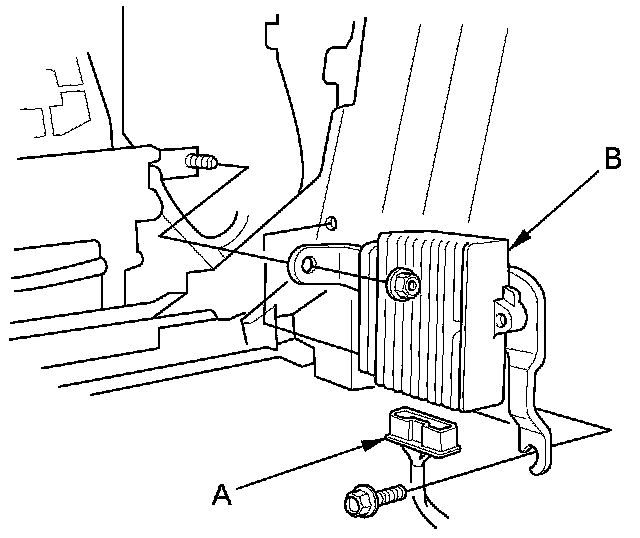

2. Disconnect the engine mount control unit 16P connector (A).





3. Remove the engine mount control unit (B).

4. Install the parts in the reverse order of removal.
