Intake Manifold

Injector Base





Tighten in a crisscross pattern in three steps, beginning with the inner nuts.

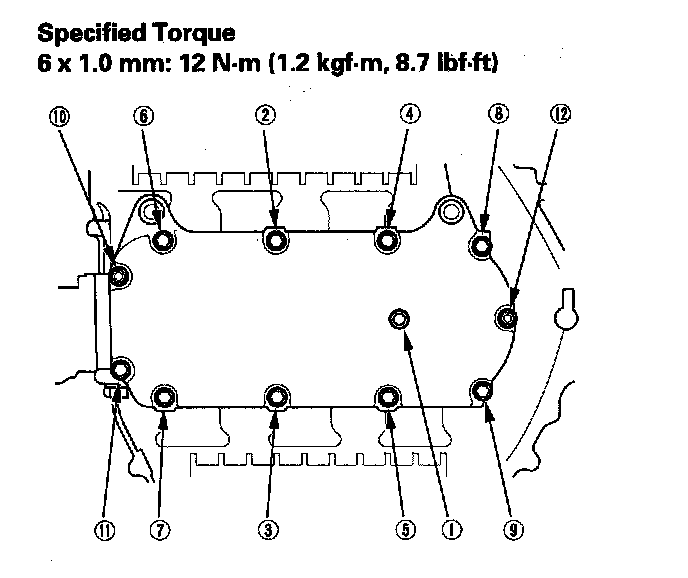

Intake Manifold

Upper





Tighten the bolts and nuts sequentially in three steps.

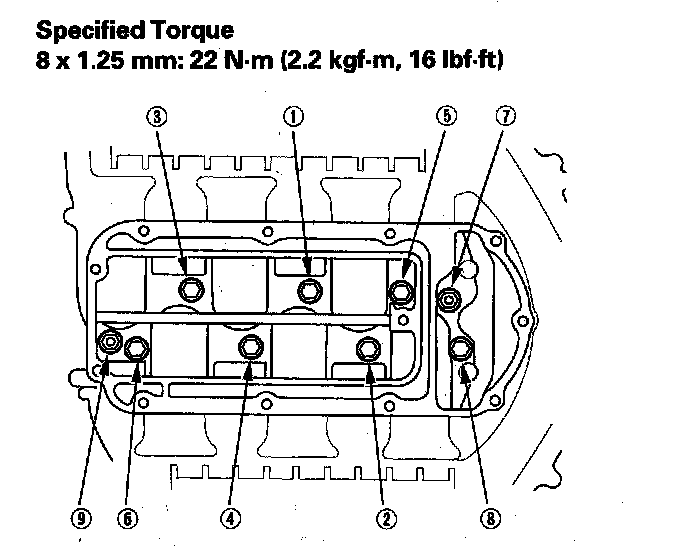

Lower





Tighten the bolts and nuts sequentially in three steps.

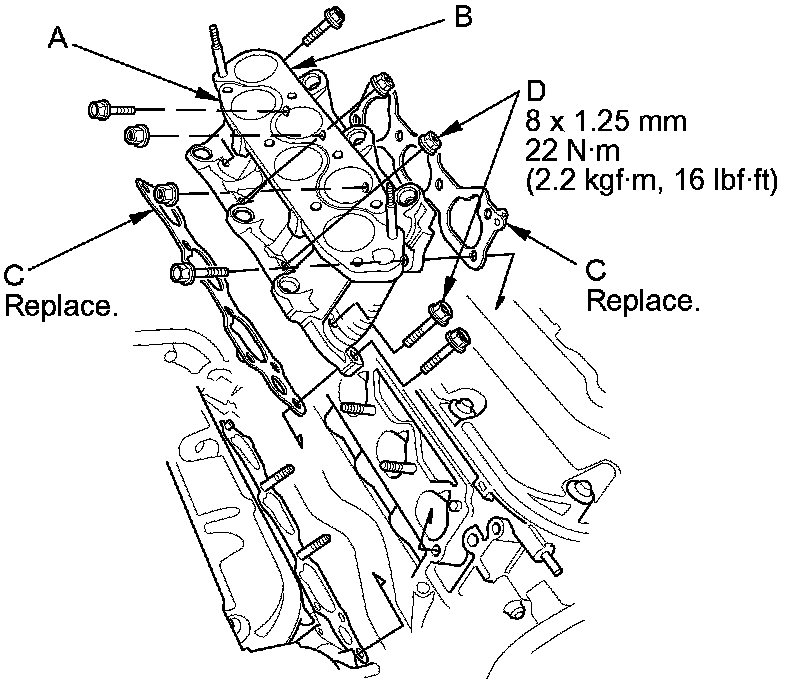

Throttle Body

Tighten the bolts and nuts to 22 N.m (16 lbf.ft)
