Communications Control Module: Service and Repair

HandsFreeLink Control Unit Removal/Installation

NOTE: Tell the customer they need to write down all phone numbers as there is no way to transfer the information in the original HandsFreeLink control unit to a new HandsFreeLink control unit.

1. Remove the passenger's center console trim Center Console Removal/Installation.

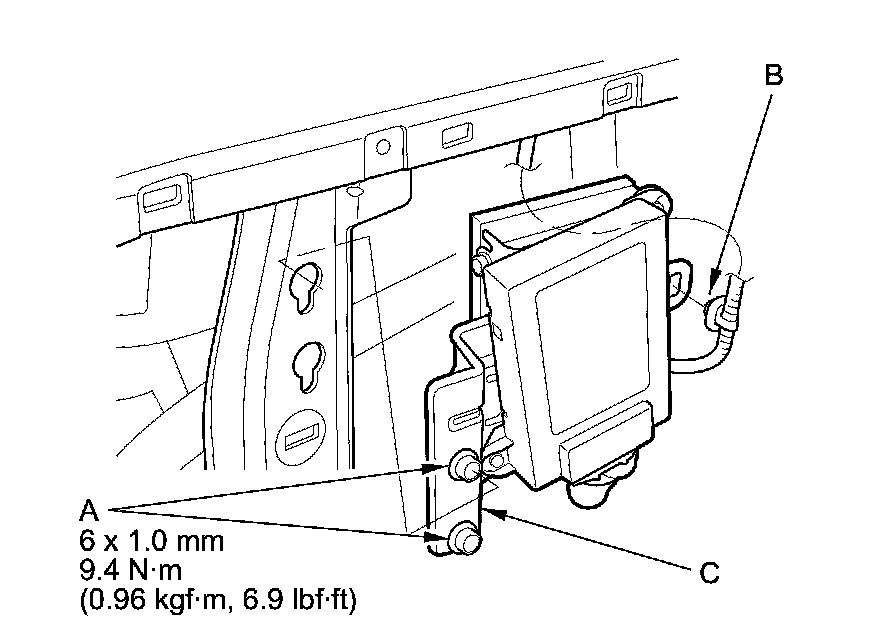

2. Loosen the bolts (A) and detach the harness clip (B), then pull out the stay (C).

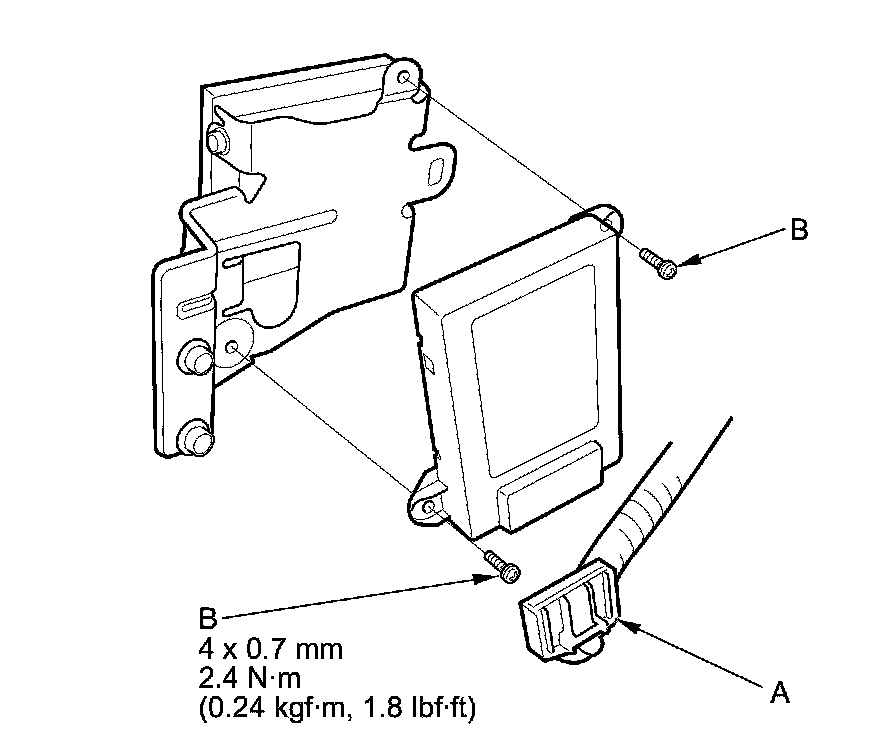

3. Disconnect the connector (A), then remove the bolts (B) and the HandsFreeLink control unit (C).





4. Install the HandsFreeLink control unit in the reverse order of removal.
After replacing the HandsFreeLink control unit, tell the customer:

- They need to pair their phones to the system.
- They need to set up their system preferences.
