View 132 - Washer Fluid Level Switch Connector View (Washer Fluid Level Indicator)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

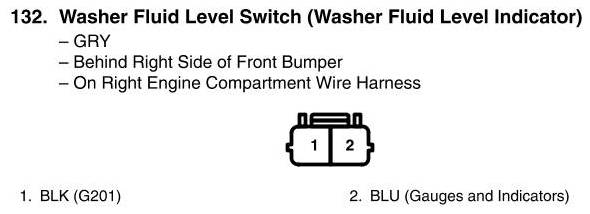

View 132 - Washer Fluid Level Switch Connector View (Washer Fluid Level Indicator)
