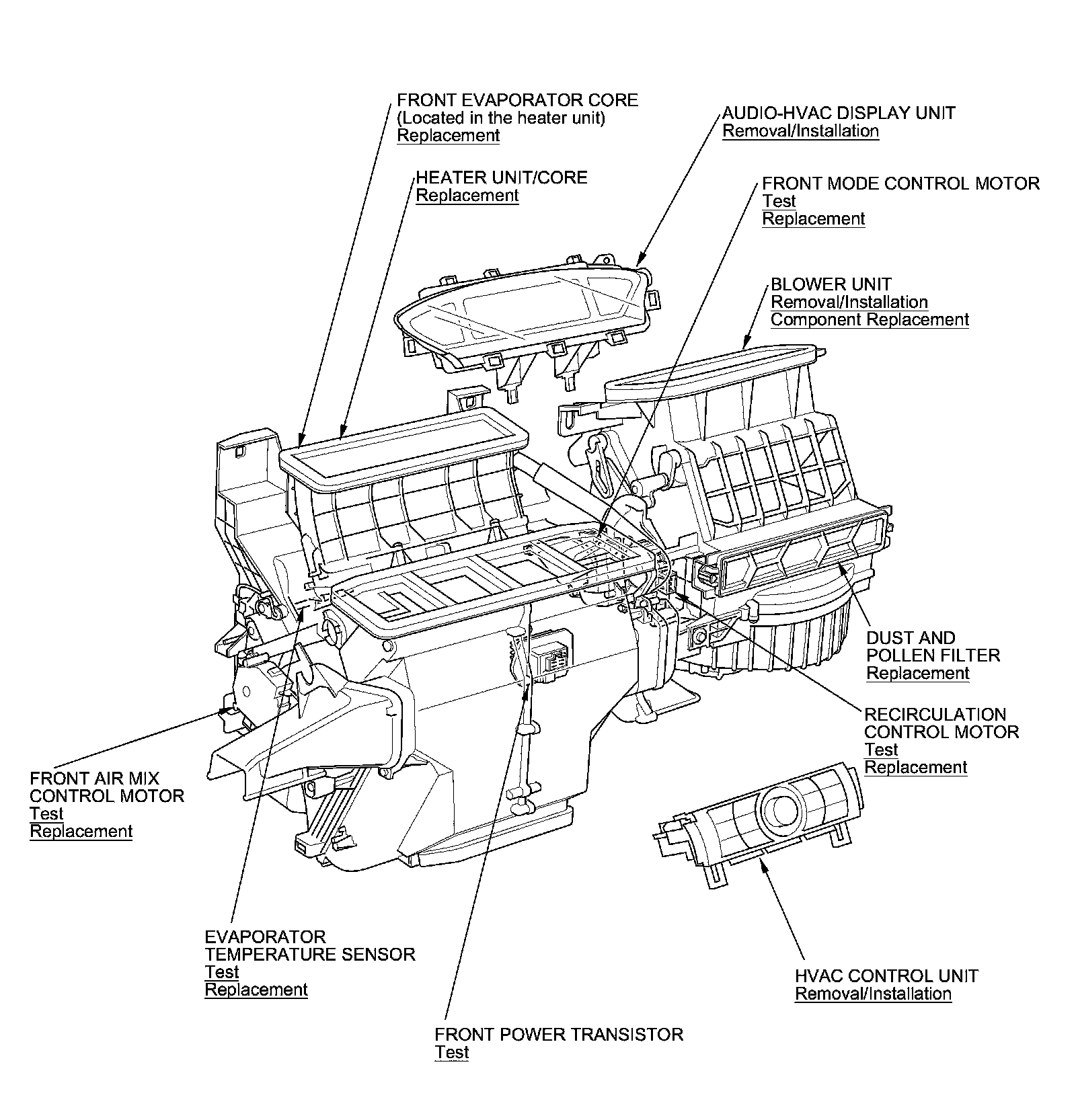

Heating And A/C Systems Component Location Index
Heating and A/C Systems Component Location Index
'09-10 models
