Front Rocker Arm Oil Control Valve Replacement




Front Rocker Arm Oil Control Valve Replacement

1. Remove the front rocker arm assembly.

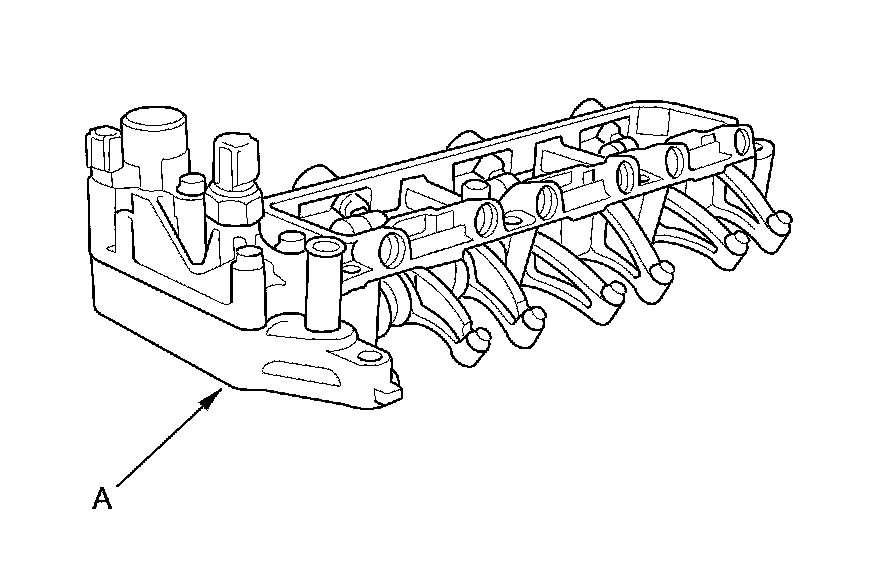

2. Remove the front rocker arm oil control valve (A).






3. Install the front rocker arm oil control valve in the reverse order of removal.
