View 97 - Radiator Fan Motor Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

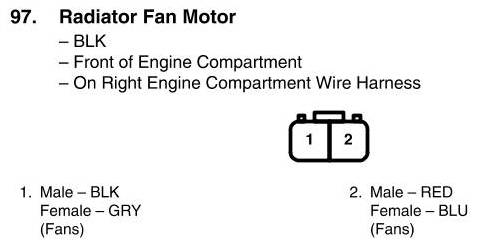

View 97 - Radiator Fan Motor Connector View
