Audio Unit Connector For Inputs and Outputs
With Navigation

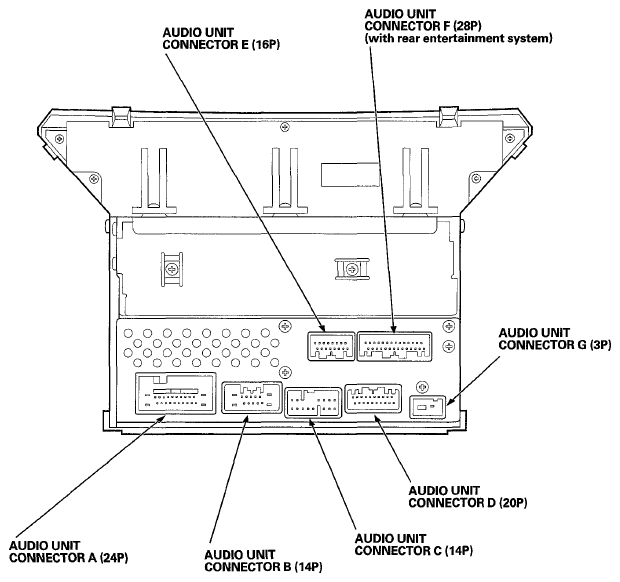

Fig 1: Identifying Audio Unit Connector Location - With Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
