Audio-HVAC Display Unit Connector For Inputs and Outputs

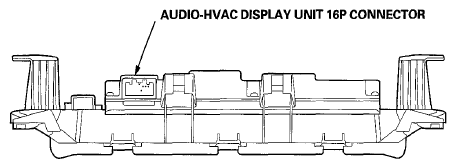

Fig 1: Identifying Audio-HVAC Display Unit 16P Connector
G05966824Courtesy of AMERICAN HONDA MOTOR CO., INC.
