Auxiliary Jack Assembly Connector For Inputs and Outputs

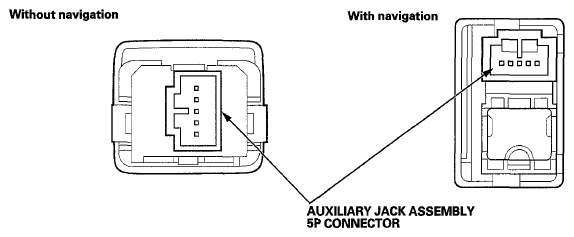

Fig 1: Identifying Auxiliary Jack Assembly 5P Connector
G05966840Courtesy of AMERICAN HONDA MOTOR CO., INC.
