USB Adapter Unit Connectors For Inputs and Outputs

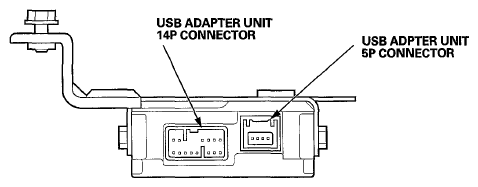

Fig 1: Identifying USB Adapter Unit 14P Connectors & USB Adapter Unit 5P Connectors
G05966832Courtesy of AMERICAN HONDA MOTOR CO., INC.
