HandsFreeLink Control Unit Inputs and Outputs

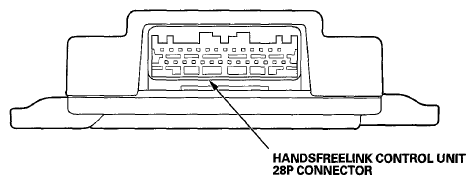

HandsFreeLink Control Unit 28P Connector

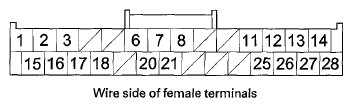

CONNECTOR TERMINALS REFERENCE TABLE
| Cavity | Wire Color | Connect to | ||
|---|---|---|---|---|
| 1 | BLK | Body ground to G402 (GND) | ||
| 2 | WHT | HFL switch (HFL STRG SW) | ||
| 3 | BLU/GRN | Audio unit and HFL-navigation-ANC microphone (HFL MUTE) | ||
| 6 | WHT | Navigation unit (NAVI COMM 4) | ||
| 7 | RED | Navigation unit (NAVI COMM 3) | ||
| 8 | BLU(1) | Shield for terminals No. 6, No. 7, No. 20 and No. 21 (NAVI COMM SH) | ||
| 11 | GRN | Audio unit (TELM SIG+) | ||
| 12 | LT BLU(1) | Shield for terminals No. 13 and No. 14 (MIC SH) | ||
| 13 | BRN | Front HFL-navigation-ANC microphone (MIC+) | ||
| 14 | YEL | Front HFL-navigation-ANC microphone (MIC-) | ||
| 15 | WHT | No. 23 (10 A) fuse in the under-hood fuse/relay box (+B) | ||
| 16 | PUR | No. 35 (10 A) fuse in the under-dash fuse/relay box (ACC) | ||
| 17 | LT GRN | B-CAN (B-CANL) | ||
| 18 | WHT | B-CAN (B-CAN H) | ||
| 20 | BLK | Navigation unit (NAVI COMM1) | ||
| 21 | GRN | Navigation unit (NAVI COMM2) | ||
| 25 | RED | Audio unit (TELM SIG-) | ||
| 26 | BLU(1) | Shield for terminals No. 11 and No. 25 (TELM SIG SH) | ||
| 27 | YEL | Navigation unit (MIC SIG+) | ||
| 28 | BRN | Navigation unit (MIC SIG-) | ||
|
||||
