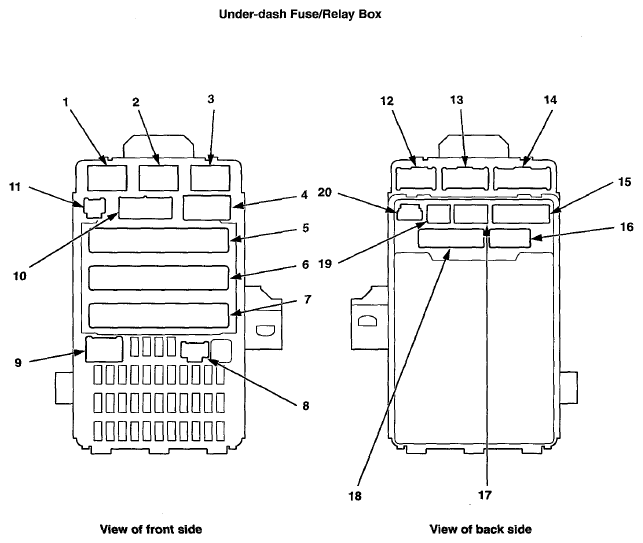

| 1 |
Power Window Relay |
4 |
|
|
| 2 |
PGM-Fl Main Relay 2 |
4 |
|
|
| 3 |
Starter Cut Relay 1 |
4 |
|
|
| 4 |
D |
2 |
Dashboard Wire Harness (View of Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 5 |
E |
42 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 6 |
F |
34 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 7 |
G |
21 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 8 |
H (MICU Service Check Connector) |
3 |
|
|
| 9 |
A (Option Connector) |
6 |
|
|
| 10 |
C |
4 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 11 |
B (MES Connector) |
2 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
'09-'10 |
| 12 |
K |
8 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 13 |
M |
10 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 14 |
N |
14 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 15 |
R |
20 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 16 |
S (MICU) |
20 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 17 |
Q |
16 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 18 |
T (MICU) |
34 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 19 |
P |
10 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| 20 |
J |
4 |
Dashboard Wire Harness (View Driver's Side) (see
DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
