Automatic Lighting Sensor/Sunlight Sensor (View 199)

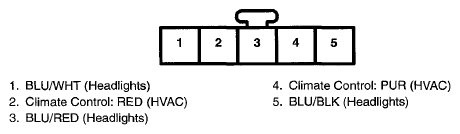

Fig 1: Automatic Lighting Sensor/Sunlight Sensor Connector Terminal (View 199)
G07763075
