Driver's Power Seat Recline Motor/Position Sensor (DPMS) (View 274)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver's Power Seat Recline Motor/Position Sensor (DPMS) (View 274)
WHT
Under Driver's Seat
On Driver's Seat Wire Harness

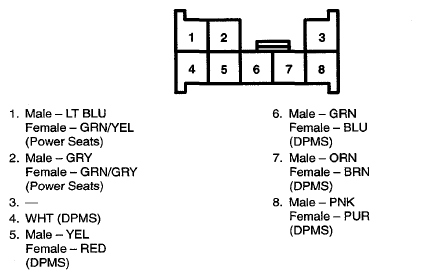

Fig 1: Driver's Power Seat Recline Motor/Position Sensor (DPMS) Connector Terminal (View 274)
