HandsFreeLink Control Unit (Navigation) (View 349)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
HandsFreeLink Control Unit (Navigation) (View 349)
GRY
Under Center Console
On Dashboard Wire Harness

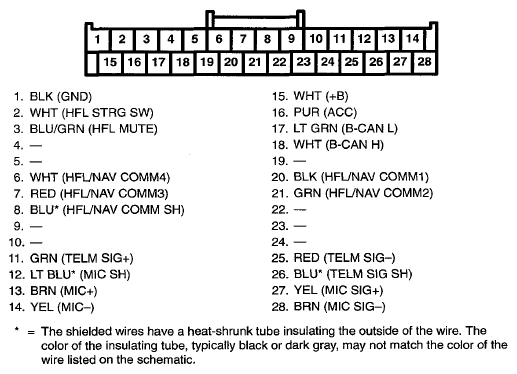

Fig 1: Handsfreelink Control Unit (Navigation) Connector Terminal (View 349)
