Navigation Unit (Navigation) (View 368)

GRY
Behind Navigation Unit
Connector A
- On Floor Wire Harness

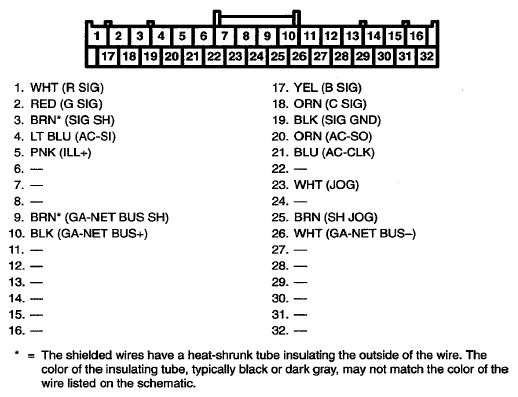

  Fig 1: Navigation Unit (Navigation) Connector A Terminal (View 368)
Connector B
- On Floor Wire Harness

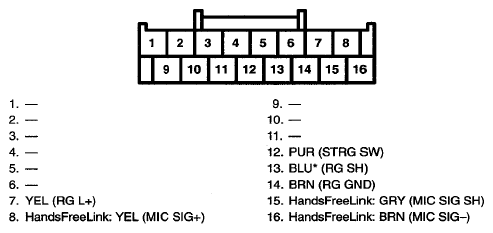

Fig 2: Navigation Unit (Navigation) Connector B Terminal (View 368)

Connector C
- On Floor Wire Harness

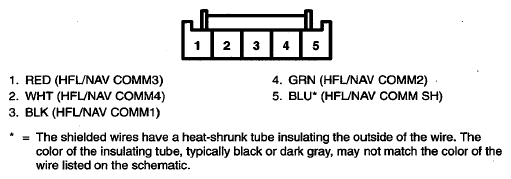

Fig 3: Navigation Unit (Navigation) Connector C Terminal (View 368)

Connector D
- On Floor Wire Harness

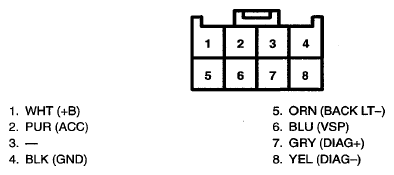

Fig 4: Navigation Unit (Navigation) Connector D Terminal (View 368)

Connector E
- On GPS Antenna Sub-lead Harness

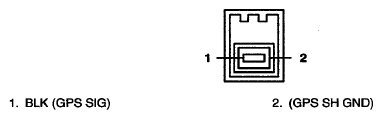

Fig 5: Navigation Unit (Navigation) Connector E Terminal (View 368)
