Trailer Lighting Control Unit (Trailer Connector) (View 298)
GRY/WHT
Left Side of Cargo Area
On Floor Wire Harness

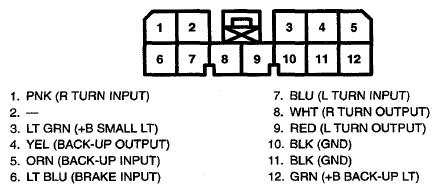

Fig 1: Trailer Lighting Control Unit (Trailer Connector) Connector Terminal (View 298)
