Pilot EX, 3.5 4
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
System Description
>>
Electronic Control System
>>
PCM A/T Control System Electrical Connections
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
PCM A/T Control System Electrical Connections

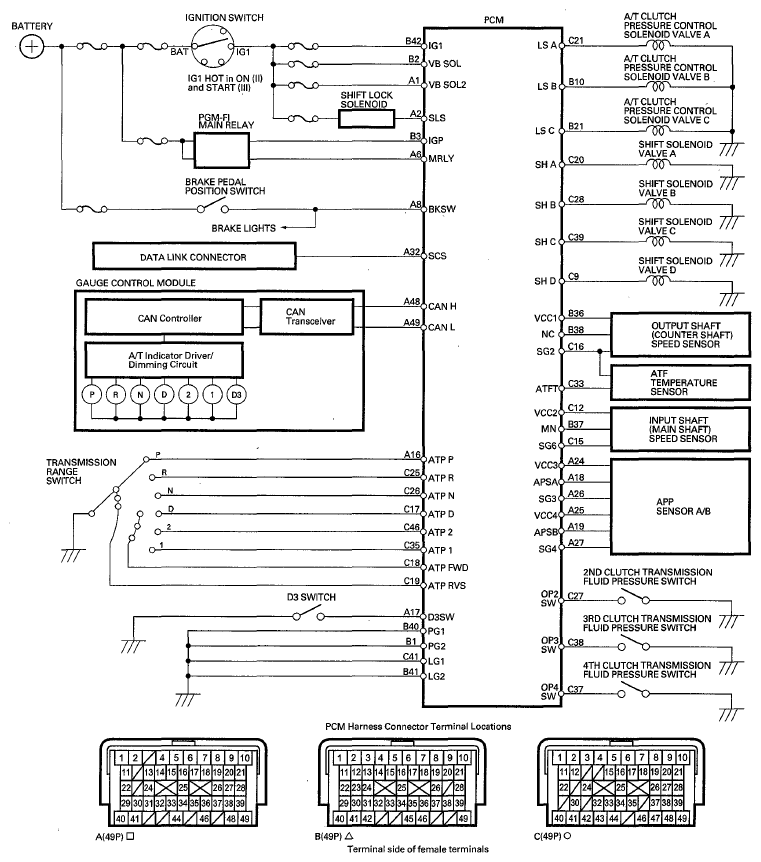

Fig 1: Identifying PCM A/T Control System Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
