Circuit Diagram

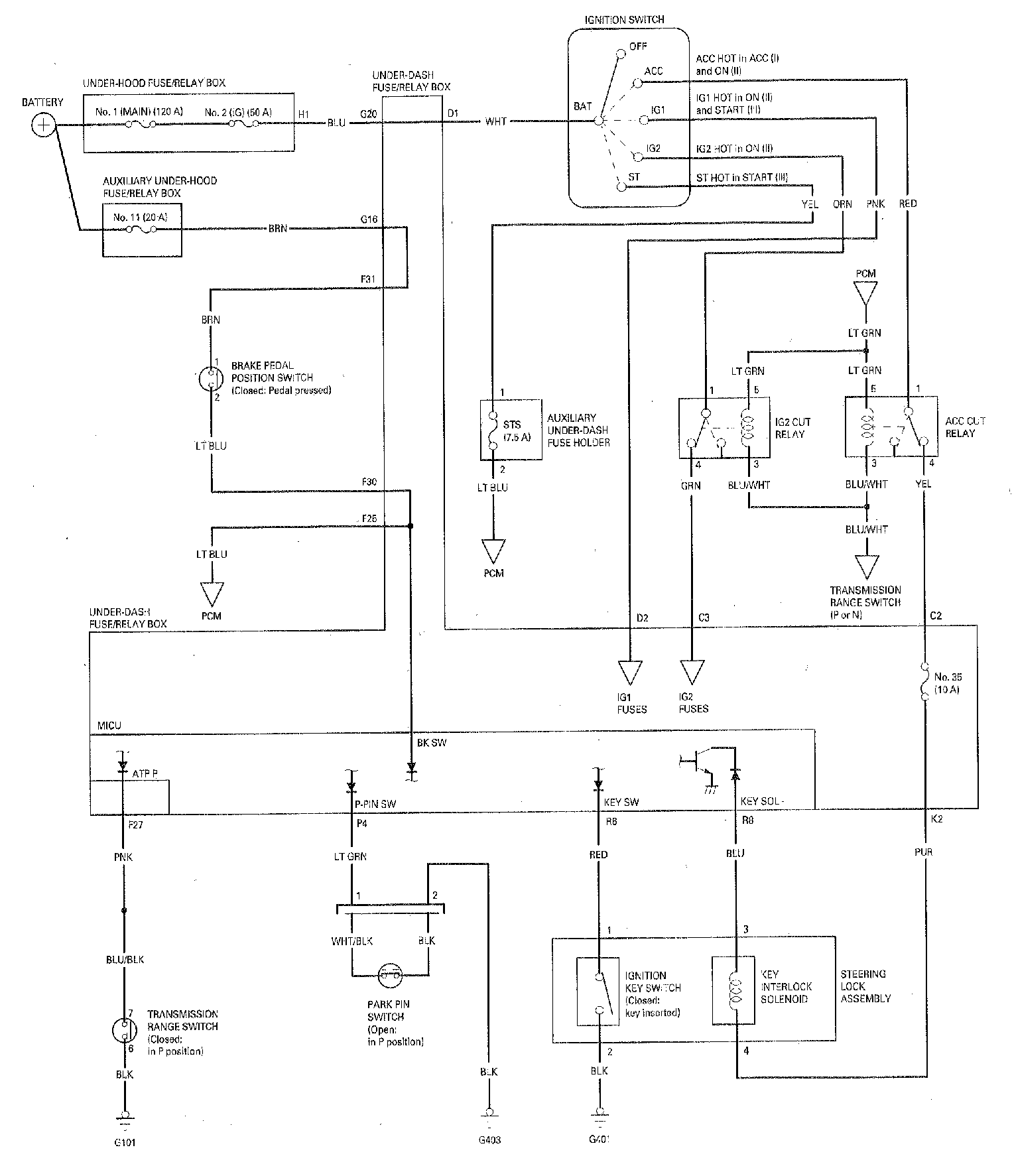

Fig 1: Ignition Switch Circuit Diagram

G00482250

Courtesy of AMERICAN HONDA MOTOR CO., INC.
