Exploded View

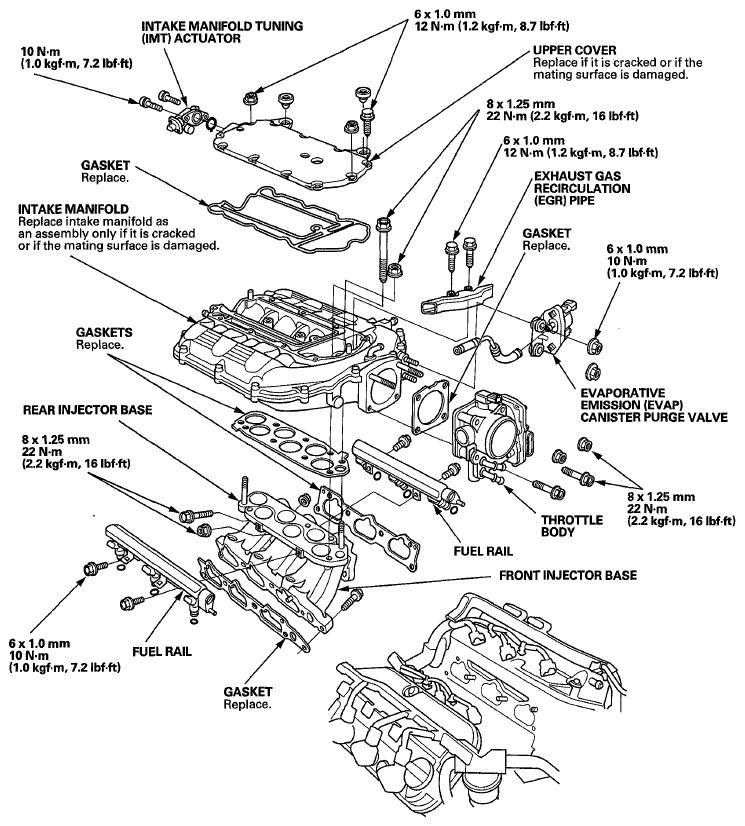

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications
G05961157Courtesy of AMERICAN HONDA MOTOR CO., INC.
