Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
A/T Interlock System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

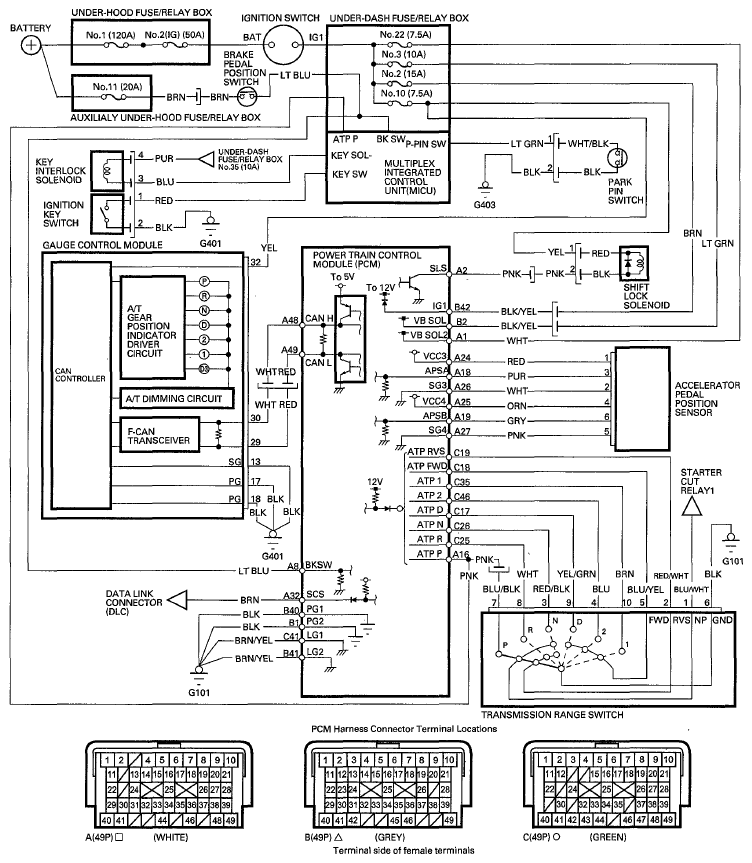

Fig 1: Identifying A/T Interlock System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
