Back-Up Sensor Control Unit Connector End View (Honda Accessory) (View 302)

• WHT
• Behind left side of rear seat
• On back-up sensor harness (Honda Accessory)

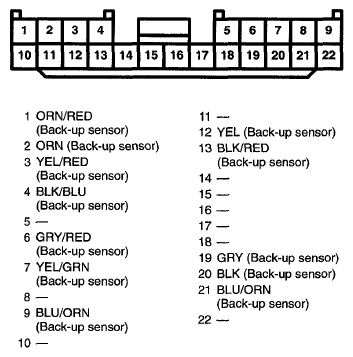

Fig 1: Back-Up Sensor Control Unit Connector Terminal (Honda Accessory) (View 302)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
